Product Description

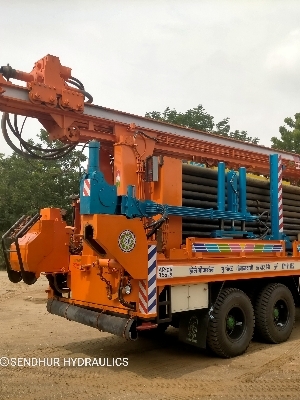

SHE - AXL FULLY AUTOMATIC ROD CHANGER DIAMETER 6 1/2" Drill to 8 1/2" PRIME MOVER On suitable truck mounted rig with power from truck engine through transmission gear box MAST TYPE Heavy ISMC structural type CAPACITY 18 ton 25 tons HEIGHT 8.6 mtrs ROD HANDLING CAPACITY 6.1 mtr (20 feet) JACKS Box type hydraulic jacks 4 nos FEED CYLINDER & WIRE ROPE 1.3 ratio DRILL ROTARY HEAD 3: 1 Gear Box MOTOR OMV 315/400 ROTARY SPINDLE 0 to 160 RPM DRILL ROD CHANGING Automatic rod changer type PLC control system type A 300 mtrs 400 mtrs 500 mtrs 600 mtrs FEED CYLINDER CAPACITY 125*2350 140*2350 160*2350 180*2350 PUMP 38+45 GPM 50+50 GPM 50+65 GPM 65+65 GPM MAX.LOAD LIFTING 7250 KG 9100 KG 12000 KG 15000 KG COMPRESSOR CFM/PSI 1100/300 CFM/PSI 1100/300 CFM/PSI 1100/350 CFM/PSI 1100/350 MAX. PULL UP SPEED 24450 ib-in 24450 ib-in 24450 ib-in 48900 ib-in MAX.PULL IN SPEED 20 ft/8 sec 20 ft/7 sec 20 ft/ 8 sec 20 ft/ 10 sec MAX.TARQUE 24450 ib-in 24450 ib-in 24450 ib-in 48900 ib-in WATER PUMP P-56 TYPE WORKING PRESSURE FLOW RATE Triplex reciprocating pump 110 Bar 106 LPM WATER PUMP P-76 TYPE WORKING PRESSURE FLOW RATE Triplex reciprocating pump 180 Bar 150 LPM WELDING MACHINE 220 Amps, 250 Amps, 300 Amps HAMMER DISMANTLER Hydraulic type
