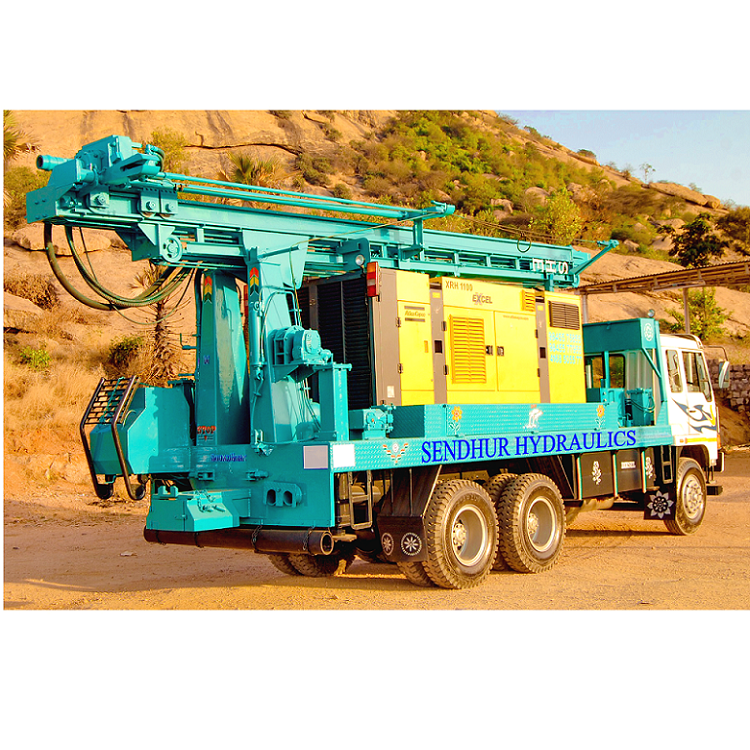

DTH BORE WELL DRILLING RIG

தயாரிப்பு விளக்கம்

We are Leading Manufacturer and Supplier of Automatic DTH Water Well Drilling Rigs. We can deliver Couple of Weeks a Bore Well Drilling Machine. SHE - XL MANUAL ROD CHANGERDIAMETER - 6 1/2" Drill to 8 1/2"PRIME MOVER - On suitable truck mounted rig with power from truck engine through transmission gear boxMAST TYPE - Heavy ISMC structural type CAPACITY 18 ton 25 tons HEIGHT 8.6 mtrsDRILL ROD LENGTH -6.1 mtr (20 feet) Pipe Size 114 mmJACKS Box type hydraulic jacks 4 nos FEED CYLINDER & WIRE ROPE 1.3 ratio DRILL ROTARY HEAD 3: 1 Gear Box MOTOR OMV 315/400 ROTARY SPINDLE 0 to 160 RPM DRILL ROD CHANGING XL Manual Type Rod Changer 300mtrs 400 mtrs 500 mtrs 600 mtrs FEED CYLINDER CAPACITY 125*2350 140*2350 160*2350 250*2350 PUMP 38+45 GPM 50+50GPM 50+65 GPM 65+65 GPM MAX.LOAD LIFTING 7250 KG 9100 KG 12000 KG 15000 KG COMPRESSOR CFM/PSI 1100/300 CFM/PSI 1100/300 CFM/PSI 1100/350 CFM/PSI 1100/350 MAX. PULL UP SPEED 24450 ib-in 24450 ib-in 24450 ib-in 48900 ib-in MAX.PULL IN SPEED 20 ft/ 8 sec 20 ft/ 7 sec 20 ft/ 8 sec 20 ft/ 10 sec MAX.TARQUE 24450 ib-in 24450 ib-in 24450 ib-in 48900 ib-in WATER PUMP P-56 TYPE * WORKING PRESSURE FLOW RATE Triplex reciprocating pump 110 Bar 106 LPM WATER PUMP P-76 TYPE * WORKING PRESSURE FLOW RATE Triplex reciprocating pump 180 Bar 156 LPM WELDING MACHINE * 220 Amps, 250 Amps, 300 Amps HAMMER DISMANTLER * Hydraulic type
