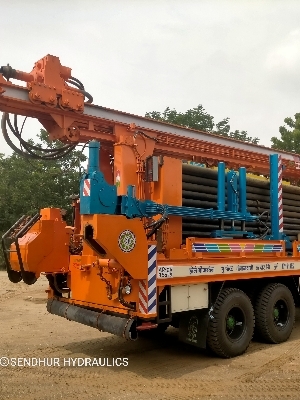

Water Well Drilling Rig Machine

Name: Water Well Drilling Rig Machine
Brand: SENDHUR HYDRAULICS
Price: 4000000 INR
Availability: InStock

4000000 INR/Piece

Get a Price/Quote

Product Details:

Condition New
Spindle Speed 0-150 rpm
Noise Level Less than 85 dB
Diameter Drilling diameter 90-300 mm
Table Size Standard Heavy-duty Rotary Table
Cutting Area Borehole diameter up to 300 mm
Features High drilling efficiency, robust construction, easy to operate, suitable for all kinds of geological formations
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Water Well Drilling Rig Machine Price And Quantity

Minimum Order Quantity 1 Piece
Price 4000000 INR/Piece

Water Well Drilling Rig Machine Product Specifications

Control System Hydraulic & Manual Controls
Condition New
Automatic Grade Semi-Automatic
Dimension (L*W*H) 6000 x 2100 x 2800 mm
Weight (kg) Approx. 4500 kg
Computerized No
Voltage 380V / 415V, Three Phase
Material High-grade Steel Structure
Diameter Drilling diameter 90-300 mm
Color Blue & White
Motor Power 45 HP
Spindle Speed 0-150 rpm
Noise Level Less than 85 dB
Product Type Water Well Drilling Rig Machine
Table Size Standard Heavy-duty Rotary Table
Power 45 HP
Power Source Diesel Engine/Electric Motor
Capacity Drilling depth up to 200-300 meters
Frequency 50/60 Hz
Usage & Applications Water well drilling, agricultural and industrial borewell drilling
Machine Type Rotary Drilling Rig
Features High drilling efficiency, robust construction, easy to operate, suitable for all kinds of geological formations
Cutting Area Borehole diameter up to 300 mm

Chassis Type Heavy-duty Trailer Mounted
Rod Handling System Hydraulic
Mobility Towable
Cooling System Water-cooled Engine
Casing Pipe Diameter Up to 254 mm
Working Pressure 1.7-2.5 MPa
Max Lifting Capacity 8000 Kg
Clamping Device Hydraulic operated
Drilling Method Rotary and DTH (Down-the-Hole)
Max Pull-down Force 7000 KgF
Applicable Strata Alluvial, Gravel, Soft & Medium Rock
Mud Pump Capacity 180 LPM
Fuel Consumption 8-10 L/h
After Sales Service Available

Water Well Drilling Rig Machine Trade Information

Supply Ability 10 Piece Per Month
Delivery Time 25 Days

Product Description

Engineered for unbeatable performance, our Water Well Drilling Rig Machine is a must-have for any serious drilling operation. Featuring both Rotary and DTH drilling methods, it offers robust versatility and invincible efficiency across alluvial, gravel, and rock strata. With a noteworthy heavy-duty, towable chassis and world-class mud pump capacity (180 LPM), this machine ensures easy site mobility and consistent results. Its hydraulic rod handling and sturdy clamping system offer high drilling efficiency while keeping operations safe. Benefit from popular competitive pricing, after-sales service, and long-lasting, high-grade steel construction. Ideal for water well, agricultural, and industrial borewell drilling up to 300 meters.

Competitive Advantages and User Applications

This water well drilling rig boasts a resilient heavy-duty trailer chassis, making it highly mobile across diverse locations. Used extensively in agriculture and industry, its invincible rotary and DTH drilling capabilities handle everything from soft sediments to medium rocks. Noteworthy for high efficiency and robust construction, it is trusted by contractors, government projects, and private users for both large and small-scale water borewell applications. The machine's semi-automatic operation and hydraulic controls add safety and convenience to every project.

Supply Ability, FOB Port, and Sample Policy

Our supply rate ensures timely fulfillment of orders, even for large-scale demands. The standardized list price reflects the machine's competitive valuation in the global market. Flexible FOB port options across India facilitate convenient shipping to your location. Stringent sample policies are in place to maintain product integrity, yet we collaborate with clients to ensure total satisfaction. Reach out for a customized rate evaluation based on your project requirements and current availability.

FAQ's of Water well drilling rig Machine:

Q: How does the Water Well Drilling Rig Machine operate in different geological strata?

A: The rig uses both Rotary and Down-the-Hole (DTH) drilling methods, making it efficient for drilling through alluvial soils, gravel layers, and soft to medium rock formations. The hydraulic rod handling and clamping systems ensure stable and precise operation across various ground conditions.

Q: What is the maximum drilling depth and diameter the machine supports?

A: This drilling rig is capable of achieving depths of up to 200-300 meters. It accommodates casing pipe diameters up to 254 mm and can create boreholes with diameters ranging from 90 to 300 mm.

Q: When is after-sales service available for this machine?

A: After-sales service is readily available upon installation and throughout the product's lifecycle. Our support team can be contacted for troubleshooting, spare parts, maintenance, or operational advice as needed.

Q: Where can this rig be used most effectively?

A: The machine is adaptable for use in agricultural borewell projects, industrial water extraction, and general water well drilling. Its towable trailer design enables easy relocation to rural, remote, or urban job sites alike.

Q: What are the benefits of its hydraulic rod handling and clamping device?

A: The rig's hydraulic rod handling and clamping systems enhance safety, reduce manual labor, and ensure faster setup and breakdown times. These features result in higher operational efficiency and reduced downtime during drilling projects.
