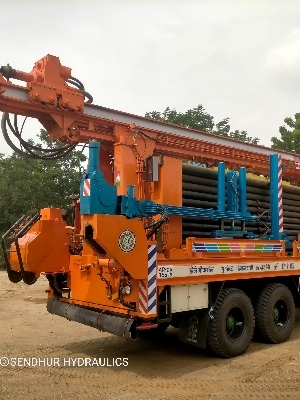

Semi-Automatic Water Well Drilling Rigs

Name: Semi-Automatic Water Well Drilling Rigs
Brand: SENDHUR HYDRAULICS
Price: 1 INR
Availability: InStock

1 INR/Unit

Get a Price/Quote

Product Details:

Frequency 50 Hz Hertz (HZ)
Machine Type Rotary Drilling Rig
Condition New
Diameter 150-400 mm Millimeter (mm)
Motor Power 80 HP Horsepower (HP)
Features High Drilling Efficiency, Robust Structure, Easy to Operate
Noise Level Low db
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Semi-Automatic Water Well Drilling Rigs Price And Quantity

Price 1 INR/Unit
Minimum Order Quantity 1 Unit

Compressor Required Air Compressor, 20-22 bar
Transport Dimensions 8500 x 2500 x 3350 mm
Climbing Capacity 20
Mud Pump Flow 150 L/min
Pull Down Force 5000 kg
Travel Speed 2.5 km/h
Water Pump Flow 160 L/min
Mounting Type Truck Mounted
Drilling Method Rotary and DTH (Down-the-Hole)
Tool Lubrication Automatic
Drill Pipe Diameter 89 mm
Stabilizers Hydraulic Outriggers
Drill Pipe Length 3 m
Rig Control Hydraulic Levers

Semi-Automatic Water Well Drilling Rigs Product Specifications

Voltage 220V/380V Volt (v)
Power 80 HP Horsepower (HP)
Automatic Grade Semi-Automatic
Machine Type Rotary Drilling Rig
Motor Power 80 HP Horsepower (HP)
Frequency 50 Hz Hertz (HZ)
Material Mild Steel
Power Source Diesel Engine
Weight (kg) 8500 kg Kilograms (kg)
Usage & Applications Water Well Drilling, Borehole, Groundwater Extraction
Product Type Water Well Drilling Rig
Control System Hydraulic and Manual
Computerized No
Spindle Speed 0 - 110 rpm RPM
Noise Level Low db
Color Blue & White
Dimension (L*W*H) 8300 x 2450 x 3200 mm Millimeter (mm)
Condition New
Features High Drilling Efficiency, Robust Structure, Easy to Operate
Diameter 150-400 mm Millimeter (mm)

Compressor Required Air Compressor, 20-22 bar
Transport Dimensions 8500 x 2500 x 3350 mm
Climbing Capacity 20
Mud Pump Flow 150 L/min
Pull Down Force 5000 kg
Travel Speed 2.5 km/h
Water Pump Flow 160 L/min
Mounting Type Truck Mounted
Drilling Method Rotary and DTH (Down-the-Hole)
Tool Lubrication Automatic
Drill Pipe Diameter 89 mm
Stabilizers Hydraulic Outriggers
Drill Pipe Length 3 m
Rig Control Hydraulic Levers

Semi-Automatic Water Well Drilling Rigs Trade Information

Supply Ability 1 Unit Per Month
Delivery Time 1 Months

Product Description

Promotion alert! Grab the prodigious Water Well Drilling Rigperfect for high-performance borehole and groundwater extraction, now available for a limited time. This crackerjack truck-mounted rig delivers rotary and DTH drilling, handling pipe diameters up to 89 mm and depths of 200 m with ease. With a robust mild steel chassis, hydraulic controls, semi-automatic operation, and automatic tool lubrication, reliability meets advanced capacity. Features include high drilling efficiency, low noise, and a climbing capability of 20, powered by an 80 HP diesel engine. Secure this superior solutionengineered for heavy-duty, professional useas exporter, manufacturer, and supplier from India.

Water Well Drilling Rigs: Features and Application Uses

Engineered with high drilling efficiency and robust structure, these Water Well Drilling Rigs are used for groundwater extraction, borehole creation, and water well drilling. Featuring a truck-mounted frame and hydraulic control, the rigs are easy to operate and adapt well to challenging terrain. Application areas span agriculture, industrial, and community water needs, ensuring reliable performance across multiple sectors. Their semi-automatic grade guarantees user-friendly and productive operation every time.

Delivery Time, Payment Terms, and Sample Policy for Water Well Drilling Rigs

Shipped goods typically reach the drop-off location within 36 weeks from order confirmation. Payment terms are flexible, with options for advance, partial exchange, or LC at sight, ensuring convenience and transparency. Our sample policy allows for evaluation units to be provided upon requestsubject to standard termshelping you experience product quality before a larger exchange. Reliable logistics streamline your procurement process for seamless delivery and installation.

FAQs of Water Well Drilling Rigs:

Q: How does the Water Well Drilling Rig operate using rotary and DTH methods?

A: The rig utilizes rotary drilling for continuous rotation and DTH (Down-the-Hole) for percussive drilling, enabling efficient penetration in diverse soil and rock formations for water well construction.

Q: What is the maximum drill depth and diameter that can be achieved?

A: This rig is capable of drilling depths up to 200 meters and handles borehole diameters ranging from 150 to 400 mm, suitable for various groundwater extraction requirements.

Q: Where are these drilling rigs commonly used?

A: Water Well Drilling Rigs are commonly deployed in agricultural areas, industrial sites, rural communities, and remote locations where groundwater accessibility is essential.

Q: What is the process for ordering and shipping the rig?

A: Once you place an order, the rig will be shipped as per agreed terms, with the drop-off completed within 36 weeks. Flexible payment options and sample evaluation are available to facilitate the transaction.

Q: How does the rigs hydraulic control system benefit users?

A: The hydraulic control system ensures precise, safe, and easy operation, allowing users to manage drilling speed, force, and alignment efficientlyeven in tough environments.

Q: What are the advantages of the automatic tool lubrication feature?

A: Automatic tool lubrication prolongs component lifespan, reduces maintenance downtime, and enhances drilling efficiency by keeping parts consistently lubricated during operation.
